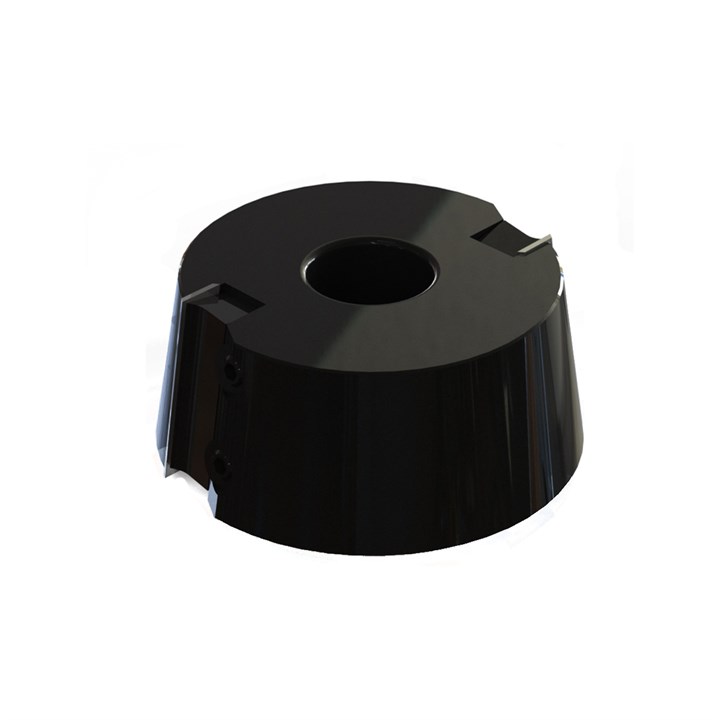

93 x 46 mm 16 mm Rebate 9 Deg TC Mould Head
Code CBS010V3
Specifications
- Height46 mm
- Diameter96 mm
- Rebate Depth16 mm
- Suitable for MDFYes
- Max RPM8000 rpm
- Number of Cutters2
- Product MaterialSTEEL
- MAN or MECMAN
- Product Weight2.5 kg
- Min RPM4500 rpm
- Custom MadeOnly returnable if faulty - please see returns policy
CloseX
Stock Quantity
Decrease
Increase

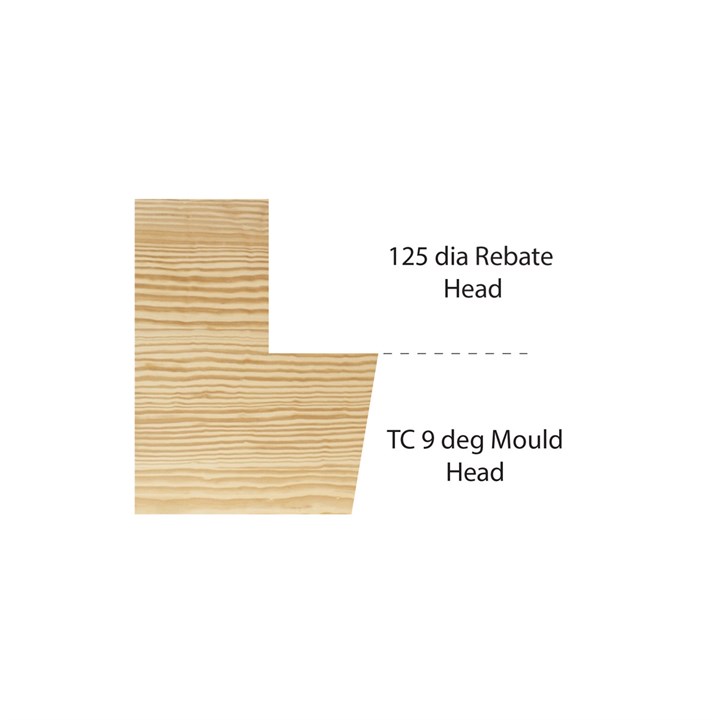

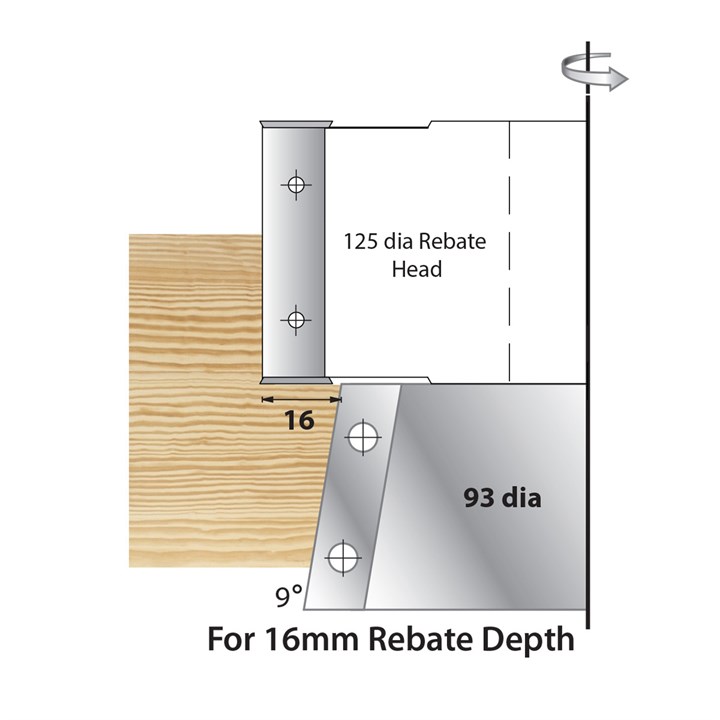

TC Mould Head for 9 degree profile mould to run with 125mm diameter rebate head to give fix depth of rebate (can also run separately).
Features:
- Cutter head equipped with TC 9 degree reversible knives (can be found in "spares" section).
- These rebate knives are in tungsten carbide, which will give a clean finish so no sanding is required.
- Suitable for spindle moulders with manual feed.
- Tool body in steel.
- Available in 1 1/4 inch & 30mm bore for spindle moulder.
