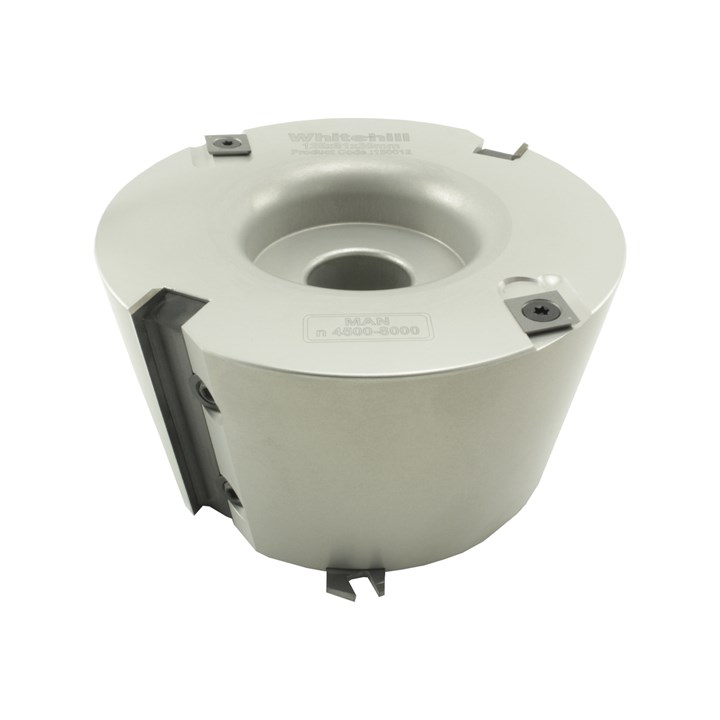

9 Degree Rebate Head
Code CBS002V7

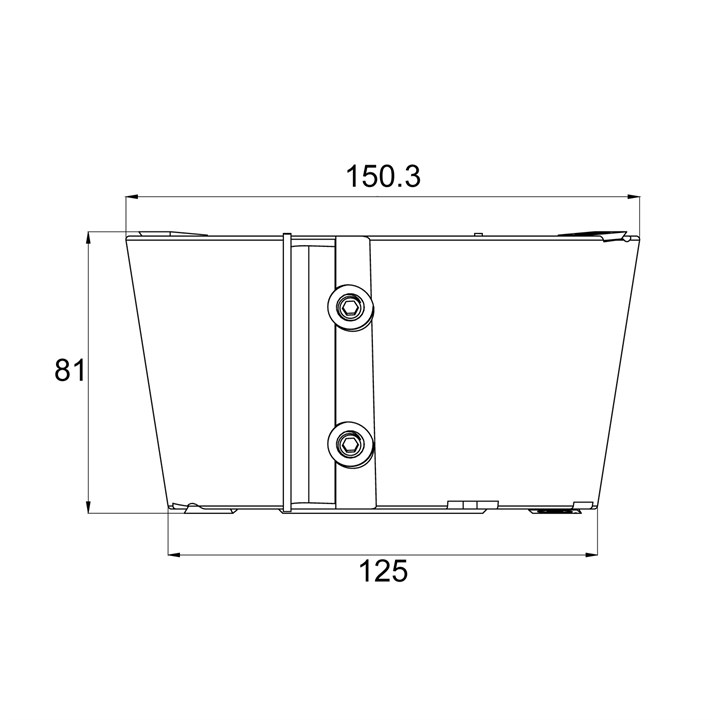

Specifications
- Height81 mm
- Diameter125 mm
- Suitable for MDFYes
- Max RPM8000 rpm
- Number of Cutters2
- Number of Spurs4
- Shear or Straight?Straight
- Product MaterialALUMINIUM
- MAN or MECMAN
- Product Weight2.7 kg
- Min RPM4500 rpm
- Custom MadeOnly returnable if faulty - please see returns policy
CloseX
Stock Quantity
Decrease
Increase
Whitehill 9 Degree Rebate Head designed for rebating, window profiling and rebating with additional profiling for MDF boards, ply or hard-textured, glued and solid timber.
Features:

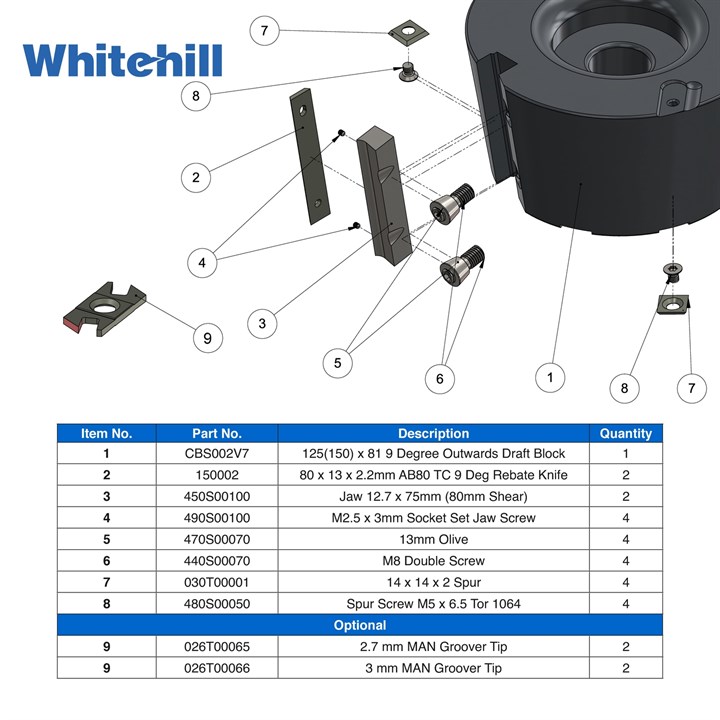

- Cutter head equipped with TC reversible knives and spurs (can be found in "spares" section).
- TC Rebate knives are straight cut configured tungsten carbide for exceptional durability and clean cut in all materials.

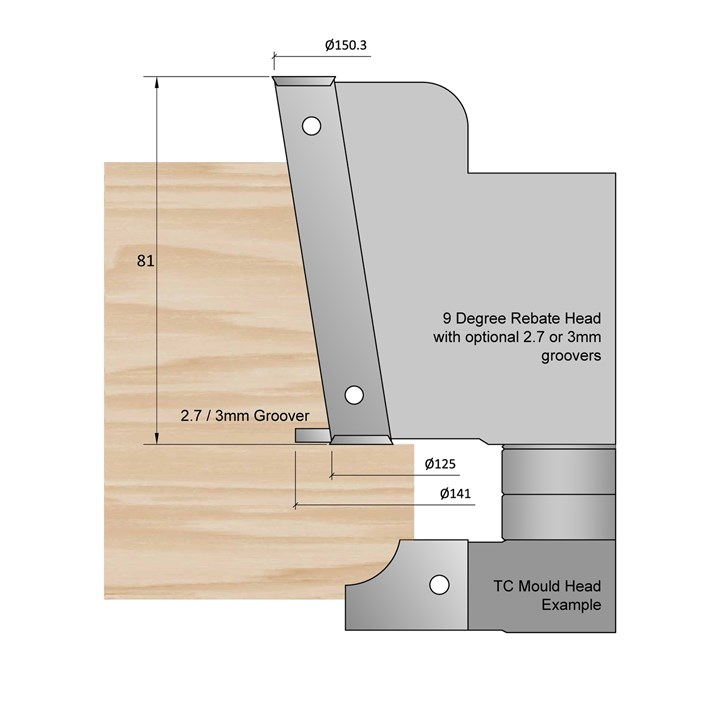

- Can be stacked on the spindle with a Whitehill 96 x 55 limiter head or a Whitehill TC Mould Head to the machine mould and rebate in one operation for maximum efficiency and consistency.
- Available with 2.7mm, 3mm, or no groover tips.
- Suitable for spindle moulders with manual feed.
- Tool body available in aluminium.
- Available in 1¼ inch or 30mm bore for spindle moulder.
- Manufactured in compliance to European Standards EN 846-1.
Downloads
Currently there are no downloads available for this product.
