125 x 55 mm Felder / Hammer Combi Heads
Code CBS004V2
Specifications
- Height55 mm
- Diameter125 mm
- Suitable for MDFYes
- Max RPM7500 rpm
- Product MaterialSTEEL
- MAN or MECMAN
- Product Weight3.9 kg
- Min RPM4000 rpm
CloseX
Stock Quantity
Decrease
Increase

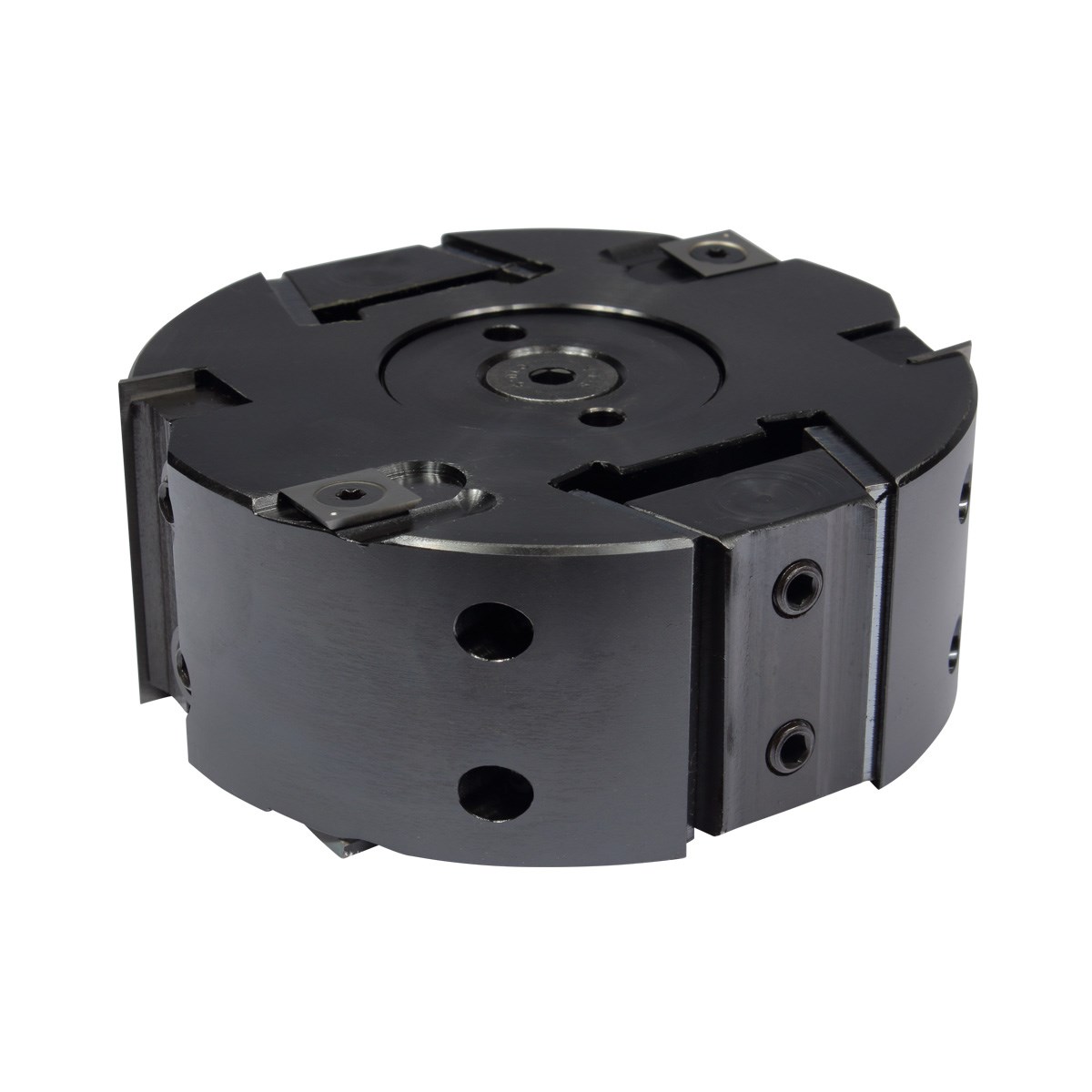

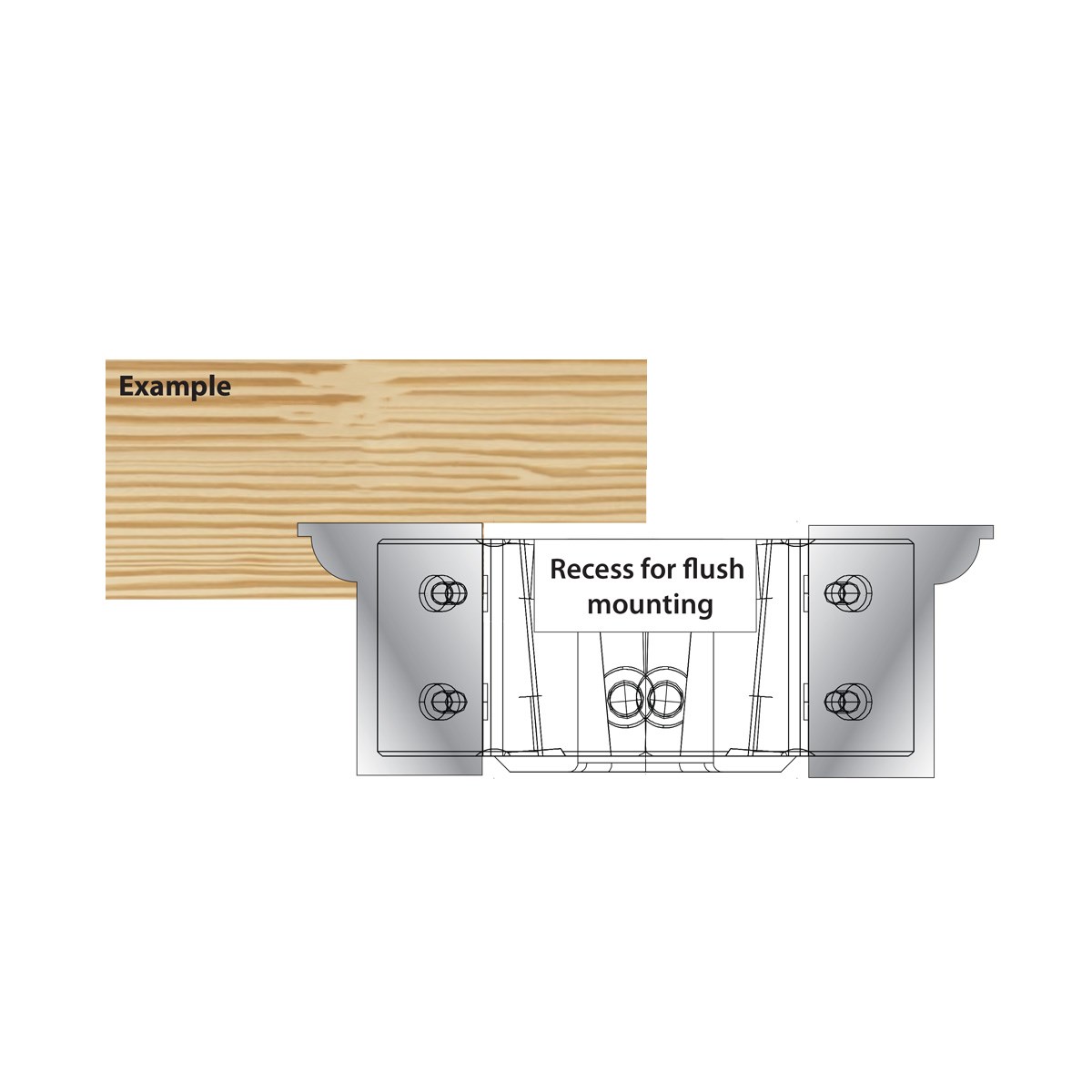

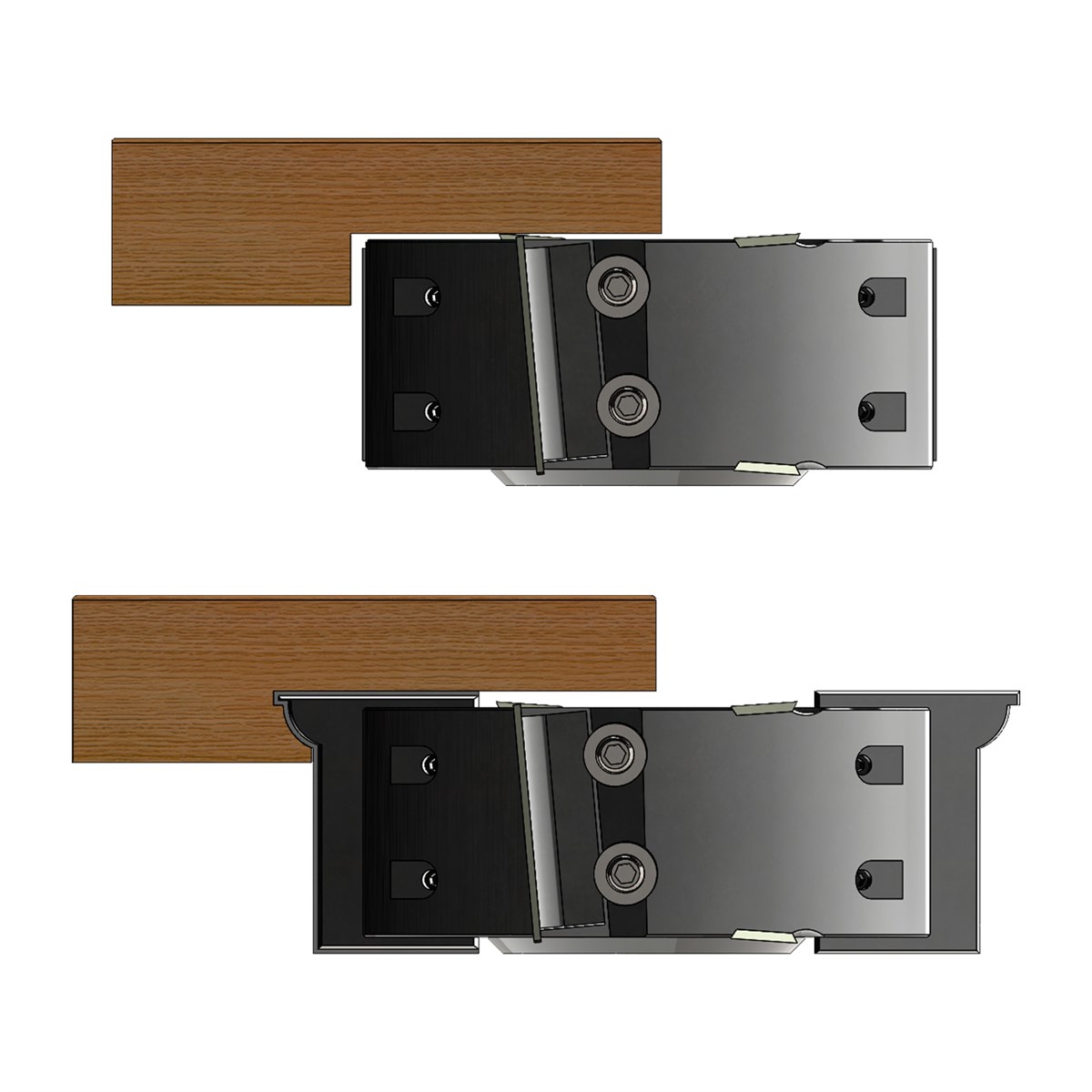

Whitehill 125 x 55 Felder / Hammer Combi Heads are recessed for flush mounting to allow timber to be passed over the top of the block. Ideal for long tenon profiling on a spindle with a sliding table.
Features:
- Supplied with Washer to suit your existing M10 x 40mm bolt (bolt not included), red pin spanner for machine without a lock.
- Cutter head equipped with TC reversible knives and spurs (can be found in "spares" section).
- These rebate knives are in tungsten carbide, which will give a clean finish so no sanding is required.
- Compatible with Whitehill B Blanks (55 x 45 x 4 mm thick) and Whitehill C Blanks (55 x 55 x 6 mm thick).
- Can take profiled high speed-steel (HSS) and tungsten carbide-tipped (TCT) cutters.
- Suitable for spindle moulders with manual feed.
- Tool body available in steel.
- Available in 1¼ inch & 30mm bore for spindle moulder.
- Manufactured in compliance to European Standards EN 846-1.
