100 x 125 mm Spiral Rebate Block - MAN
Code CBS039V3
Specifications
- Height125 mm
- Diameter100 mm
- Suitable for MDFYes
- Max RPM8000 rpm
- Number of Cutters20
- Number of Spurs4
- Product MaterialALUMINIUM
- Max Cutting Diameter100 mm
- MAN or MECMAN
- Product Weight2 kg
- Min RPM4500 rpm
- Custom MadeOnly returnable if faulty - please see returns policy
CloseX
Stock Quantity
Decrease
Increase

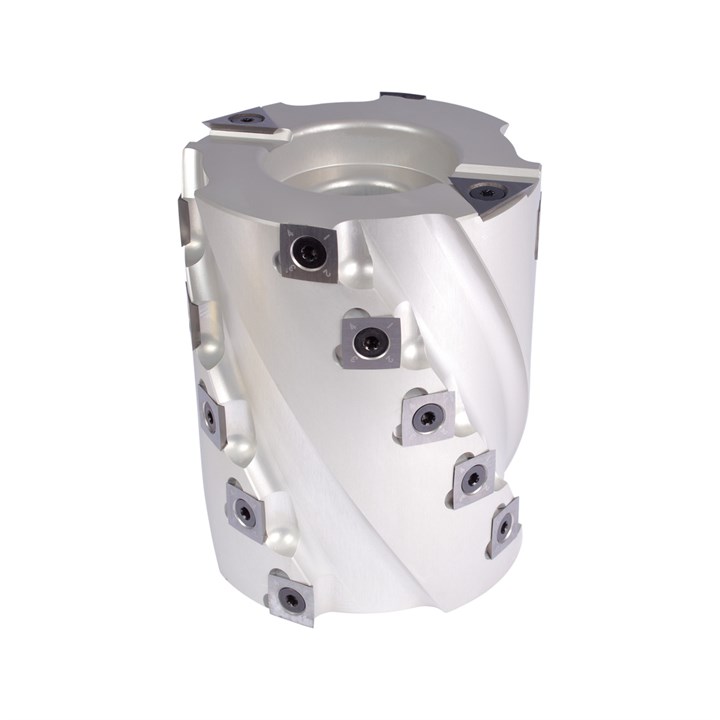

Whitehill 100mm x 125mm segmented, Spiral Rebate Block designed for clean cut in challenging material, rapid chip evacuation and clean inside corners with TCT spurs.
Features:
- Segmented design for smaller chip size.
- Spiral cutter arrangement for low noise and more efficient chip extraction.
- TC inserts for long edge life and reduced operating costs.
- 4-sided inserts for rapid refresh of dulled or damaged edges.
- Radiused inserts for exceptional finish in challenging grain.
- Suitable for pattern milling with matching bearing.
- Dynamically balanced for smooth operation.
- Suitable for spindle moulders with manual feed.
- Tool body available in aluminium.
- Available in 1¼ inch or 30mm bore for spindle moulder.
- Manufactured in compliance to European Standards EN 846-1.
